F17E F17C 8 Cylinder 139mm Diesel Engine Piston Ring 13011-2810A 13011-3150A 13019-1700A For HINO Engine Parts

Brand Name : NPR

Model Number : HINO

Place of Origin : JAPAN

MOQ : 1 SET

Price : usd+140+SET

Payment Terms : T/T

Supply Ability : 100 SETS

Delivery Time : 2-5days

Packaging Details : CARTON

Type : piston ring

Brand Name : NPR

Condition : New, 100%new

OEM No : 13011-2810A 13011-3150A 13019-1700A

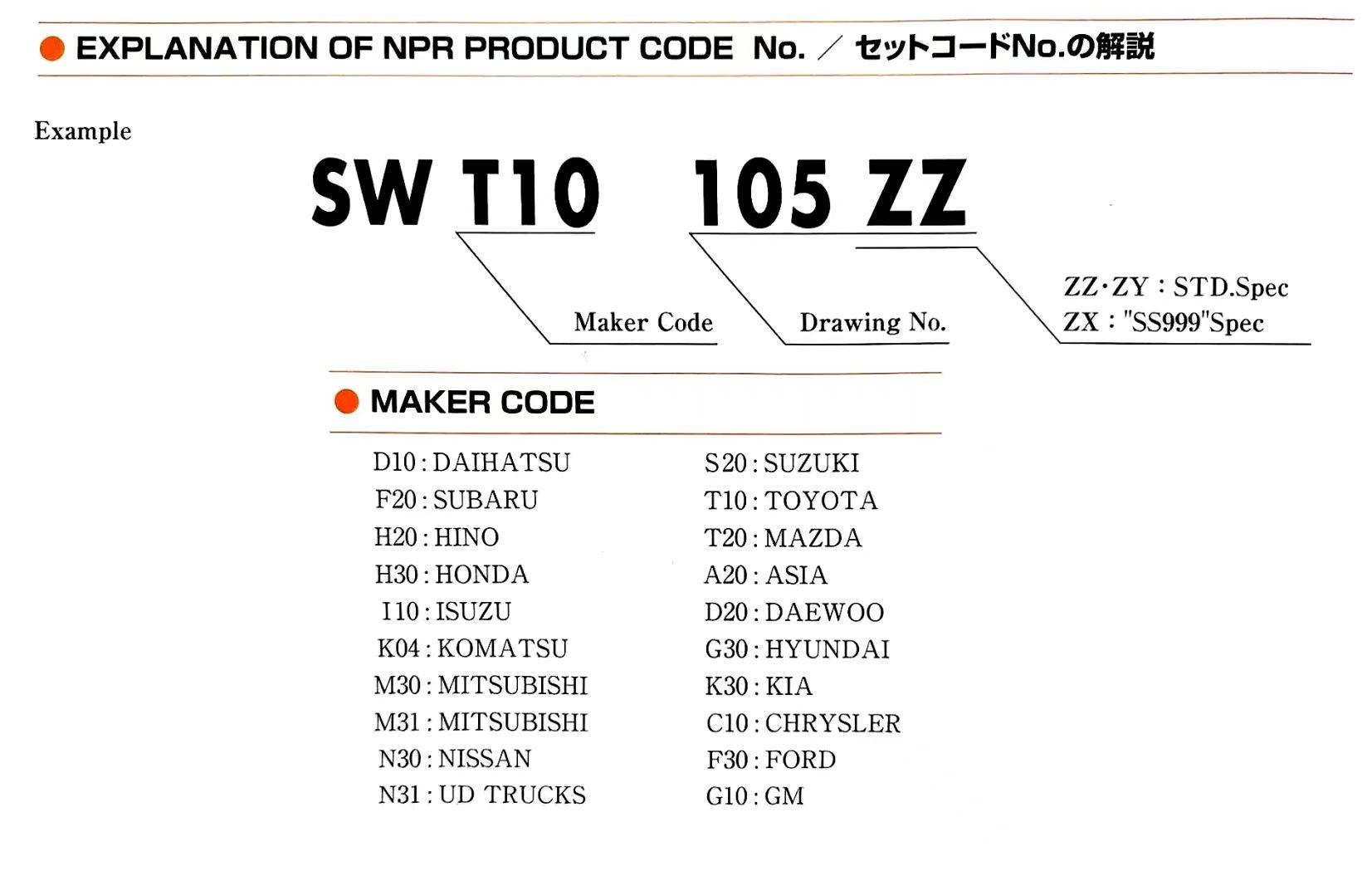

NPR Catalog Code : SDH20070ZZ

Reference : 13011-2810A 13011-3150A 13019-1700A

Make : HINO

Engine Model : F17E F17C

Cyl No. : V8

SET/CYL : SET

Delivery time : 2-5days

Contact Now

F17E F17C 8 Cylinder 139mm Diesel Engine Piston Ring 13011-2810A 13011-3150A 13019-1700A For HINO Engine Parts

Piston	Size(mm)
Piston	d1(D)	h1(B)	a1(T)
1st	139.0	3.306	4.7
2nd	139.0	3.5	5.5
3rd	139.0	3.5	5.5
Oil	139.0	5.0	4.95

F17E F17C 8 Cylinder 139mm Diesel Engine Piston Ring 13011-2810A 13011-3150A 13019-1700A For HINO Engine Parts

“NPR PISTON RING SET” Fitting Instruction

I. Install piston rings in the following order:

1,Thoroughly clean ring grooves of piston.

2,Fit the oil control -followed by compression rings in ascending order,into the ring grooves using a ring tool.

3, Take care to fit the rings with marked faces upward and toward top of the piston.

II.Confirmation that rings are fitted correctly:

1,Make sure rings can be moved freely - without jamming-in the piston grooves.

2,Make sure each ring gap is not positioned in line with piston pin axis or thrust

III.Installation of piston fitted with rings:

Always use an installation tool when inserting into cylinder.

Special instruction for fitting NPR NIFFLEX oil ring

1, Fit the expander of NIFFLEX oil ring into the ring groove by hand and ensure the ends butting together as shown in the illustration.

2,Hold with your thumb the expander at its butt ends. Fit the upper rail on to the expander with its gap approx.45° to the left,and the lower rail approx.45° to the right to the ends of expander.
